Nissin i40 Speedlite i 40 flash for Olympus Panasonic Micro Four Thirds M 3/4 40FT
- Category: Best Selling, Camera Accesories tags, Camera Accessories, Cameras & Lenses Category, New Arrivals, Olympus

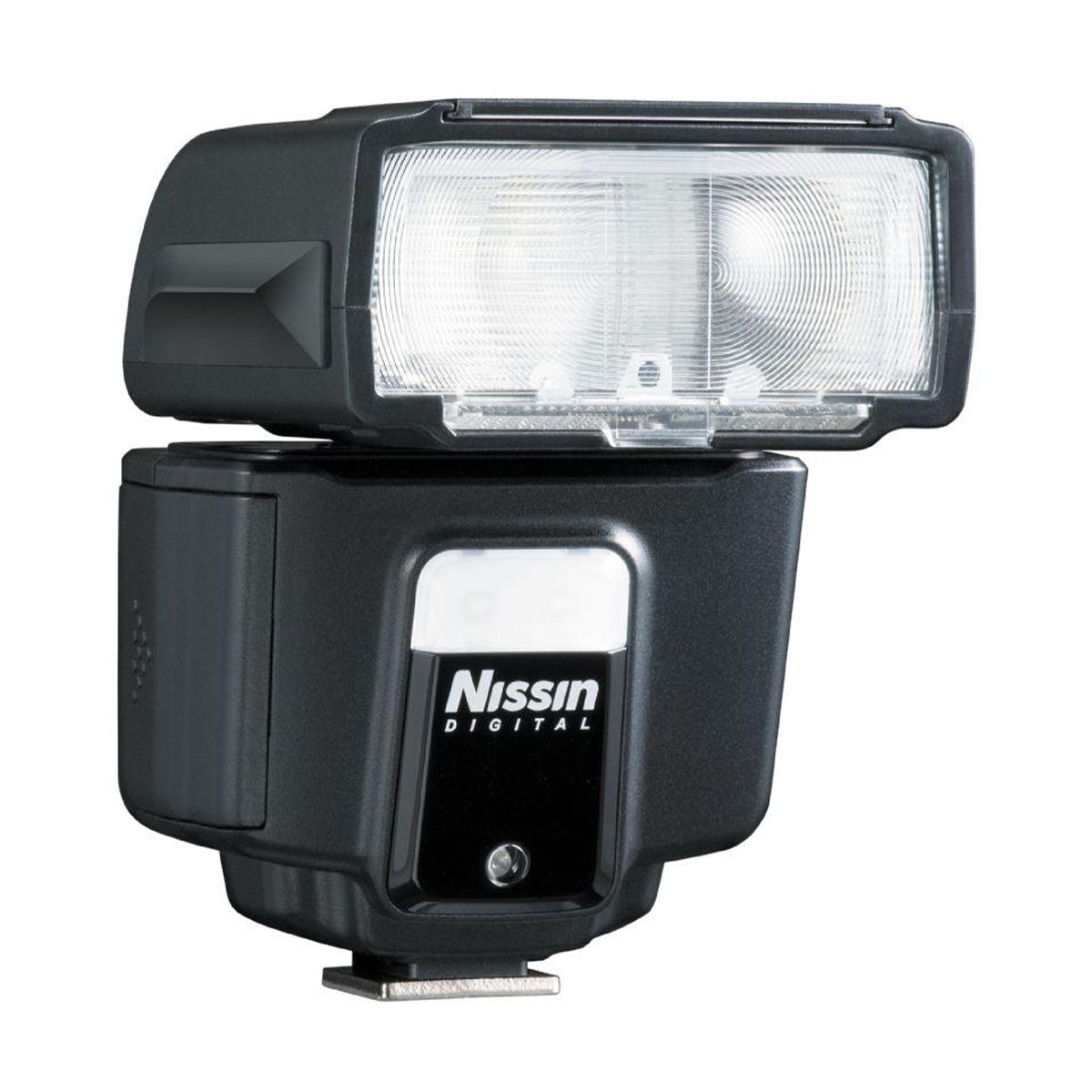

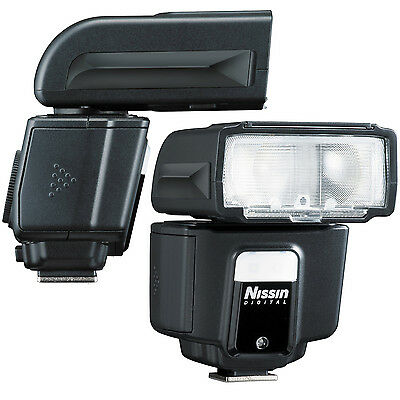

The Nissin i40 Flash is a shoe-mounted, compact flash unit designed for Four Thirds cameras featuring TTL functionality. It features a guide number of 131' at ISO 100 and in the 105mm position for providing excellent coverage within a zoom range of 24 to 105mm, or down to 16mm with the built-in wide-angle diffuser. Also, this unit features an LED light suited for video work with 9 output levels.
For control of the light during use, the flash head is able to tilt upwards 90° and can rotate 180° in both directions, giving you complete 360° coverage. There is also wireless functionality which will allow you to implement this flash off-camera in combination with other units.
The i40 features full manual control and a range of modes for getting the look you desire from your lighting. These include slow-speed, high-speed, 1st and 2nd curtain synchronization in addition to variable power from 1/1 to 1/256. The flash runs on 4 AA batteries and includes an external diffuser, soft case, and stand.
Type : | For Olympus / Panasonic |
Guide no. (at ISO 100 in m) : |
GN40 [at 105mm (53mm) zoom head position] GN27 [at 35mm (18mm) zoom head position] |
Focal length coverage : | 24mm (12mm) - 105mm (53mm) [16mm (8mm) when using built-in wide panel] |
Power Source : | Four size-AA batteries |
Recycling Time : | 0.1 ~ 4sec |
Number of flashes (Approx.) : | 220 ~ 1,700 flashes |
LED video light lighting time (Approx.) | 3.5hrs (full power batteries) |
Flash duration : | 1/800 ~ 1/20,000sec |
Color Temperature : | 5,600 K |
Exposure control : | Four Thirds TTL |
Wireless Mode : | Wireless TTL slave (*1), non-TTL Slave (SD, SF mode) (*2) |
EV compensation on flash : | +/- 2EV in increments of 1/2 of EV |
Bounce position : | Up: 0-90°, Left: 0-180°,Right: 0-180° |
Flash exposure control : | 1st & 2nd curtain synchronization, High speed synchronization, redeye reduction, slow synchronization (depend on camera), FE/ FV lock (set on camera) |
AF-assist beam effective range : | 0.7 - 5m |
Operation panel : | 2 Selector dials (Function dial and Power dial) |
Manual mode power ratio : | 1/256 ~ 1/1 |
Video light : | Built in video light with 9 steps of output level adjustment |
Accessories : | Soft case, Flash stand (with screw), Soft box, Carabiner (not for climbing) |
Dimension (Approx.) : | 85(H)x61(W)x85(D)mm/ 3.35(H)x2.4(W)x3.35(D)inch |
Weight : | 203g/ 7.16oz (without batteries and soft box) |
Notice: Design and specification are subject to change without prior notice.
Reference:
Focal length distance
Focal length coverage 24-105mm which is according to 35mm CCD format. For Four Thirds camera, focal length distance is indicated in ( ).
For different type camera, please check your camera instruction manual.
(Four Thirds) FP High- Speed Sync
FP High-Speed Sync setting in A, M, TTL mode and wireless mode are controlled by master unit. Please check your camera instruction manual.
(*1): | Only applicable to wireless Slave mode. Group A - C (any channel 1 - 4) |
(*2): | SD - Slave Digital (synchronizes to the pre-flash system. The master flash is to be set at TTL (E-TTL for Canon, i-TTL for Nikon and ADI/P-TTL for Sony) mode. SF - Slave Film. synchronizes to the traditional single flash system. The master flash is to be set at manual mode. Studio lighting system synchronizes to this mode. This mode is also available for open flash, and for a standard flash in the market. |

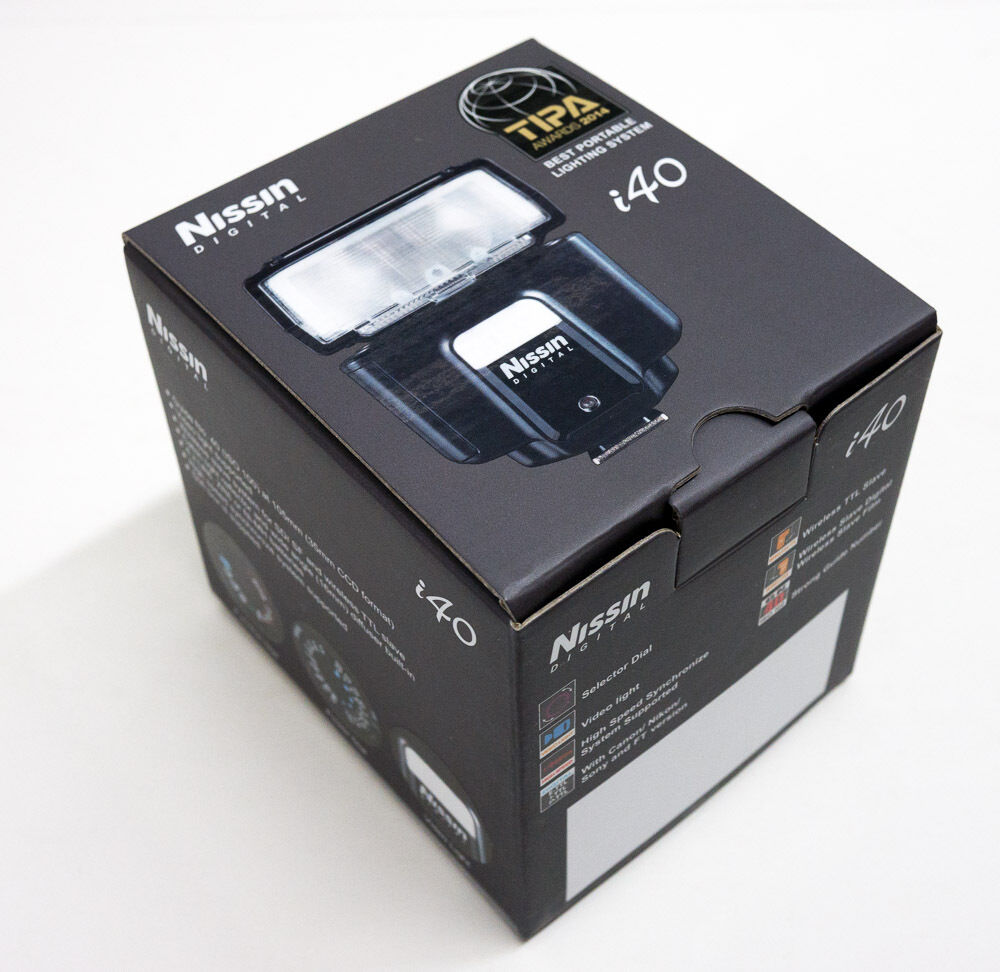

What's in the Box:
- Nissin i40 Flash
- Soft Case
- Soft Box
- Flash Stand
- Carabiner ( not for Climbing )
